针对各种车载电子设备对石英晶振在高温、抗振动等方面的更高要求，爱普生可以提供全面的符合AEC-Q200/100技术标准的汽车用车规晶振。

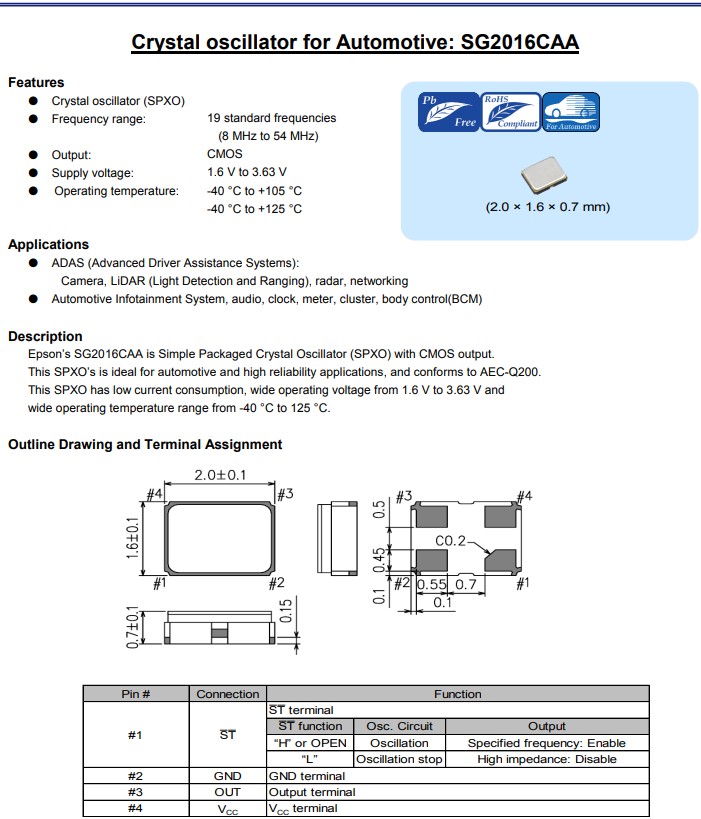

爱普生晶振推出汽车电子专用晶振SG2016CAA，是一款具有CMOS输出的简单封装石英晶体振荡器(SPXO)，小体积晶振尺寸2.0x1.6mm有源晶振，四脚贴片晶振，电源电压:1.6V至3.63V，频率范围:8MHz至54MHz，宽工作温度范围从-40℃到+105℃（+125℃），具有超小型，轻薄型，低电源电压，低抖动，耐高温，耐热、耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，符合AEC-Q200标准。这款SG2016CAA有源晶振非常适合汽车和高可靠性应用，汽车电子，汽车?？仄?，汽车多媒体，GPS导航等应用。
汽车?？仄饔τ镁д馭G2016CAA车载晶振X1G005341001100,X1G005341006200,有源晶振

产品编码	型号	频率	贴片晶振	输出波	电源电压	工作温度
X1G005341000200	SG2016CAA	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341000400	SG2016CAA	40.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341000900	SG2016CAA	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341001100	SG2016CAA	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341001300	SG2016CAA	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341001500	SG2016CAA	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341001700	SG2016CAA	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341001900	SG2016CAA	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341002400	SG2016CAA	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341002700	SG2016CAA	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341002900	SG2016CAA	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341003400	SG2016CAA	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341003500	SG2016CAA	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341003700	SG2016CAA	54.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341003800	SG2016CAA	54.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341004100	SG2016CAA	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C

X1G005341004400	SG2016CAA	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341004500	SG2016CAA	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341004600	SG2016CAA	33.333300MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005000	SG2016CAA	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341005100	SG2016CAA	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005300	SG2016CAA	33.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005400	SG2016CAA	16.666600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005600	SG2016CAA	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005700	SG2016CAA	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341005800	SG2016CAA	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341005900	SG2016CAA	16.666600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341006000	SG2016CAA	22.579200MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341006100	SG2016CAA	11.289600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341006200	SG2016CAA	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C

汽车?？仄饔τ镁д馭G2016CAA车载晶振X1G005341001100,X1G005341006200,有源晶振
近几年互联网高速发展，随着5G时代的到来，智能汽车的发展也越发的迅速。汽车电子对晶振的要求比消费类的科技数码产品高的多，特别是耐高温这一块，汽车电子中的晶振最好能在高温和低温状态下正常工作。
