- 产品型号：99127734
- 晶振频率：156.25MHz
- 晶振尺寸：7.0*5.0*1.5mm
- 产品应用： Skyworks振荡器,7050mm晶振,Si570有源晶振,570BAB000544DG晶振,高频率稳定性晶振,高可靠性晶振,进口晶振,低抖动晶振,LVDS晶振,差分晶振,SMD晶体,6G无线网络晶振,高性能仪器晶振,低抖动时钟生成晶振.
-

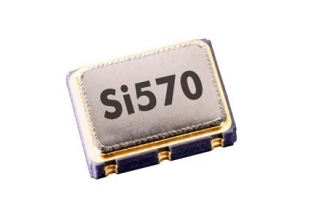

Skyworks振荡器,570BAB000544DG,6G无线网络晶振
Skyworks振荡器,570BAB000544DG,6G无线网络晶振,Skyworks振荡器,7050mm晶振,Si570有源晶振在任何频率下提供低抖动时钟的电路,Si570/Si571是用户可编程到从10到945 MHz的任何输出频率和选择频率到1400MHz,分辨率< 1ppb,该设备是通过I2C串行编程的接口,不像传统的XO,每个输出频率需要不同的晶体,Si570使用一个固定频率晶体和一个DSPLL时钟合成IC提供任意频率的操作,这种基于集成电路的方法允许晶体谐振器提供卓越的频率稳定性和可靠性,LVDS晶振,差分晶振,SMD晶体,6G无线网络晶振,高性能仪器晶振,低抖动时钟生成晶振.
Skyworks振荡器,570BAB000544DG,6G无线网络晶振特点：
•可与任意速率输出频率从10MHz到945MHz和选择频率到1.4 GHz
•I2C串行接口
•第三代DSPLL®具有优越的抖动性能
•频率稳定性优于SAW-based振荡器
•内部固定晶频，可靠性高，老化低
•具备CMOS, LVPECL，LVDS和CML输出
•3.3, 2.5和1.8 V电源选项
•工业标准的5 × 7mm封装和引脚
•无铅，符合RoHS标准
Skyworks振荡器,570BAB000544DG,6G无线网络晶振规格表
| 项目 | 符号 | 规格说明 | 条件 |
| 额定频率 | f_nom | 156.25MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | Vcc | 3.3V | |
| 储存温度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作温度 | T_use | -40℃~ +85℃ | |
| 频率稳定性 | f_tol | ±50 ppm | +25℃,超出标准的规格说明请联系我们 |
| 电源电流 | IDD | 108mA Max |
LVDS
|
| 对称性（占空比） | SYM | 45%~55% | 在输出交叉点 |
| 输出电压 | VOD | 0.9VPP Max |
LVDS
|
| VO | 1.275V Max | ||
| 输入电压 | VIH | 0.75×VDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降时间 | tr/tf | 350ps Max |
LVDS
|
| 起始时间 | t str | 10ms Max | |
| 相位抖动 | tpj | 0.62ps Max |
Differential Formats
|
.jpg)
Skyworks振荡器,570BAB000544DG,6G无线网络晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 |
| 570BAB000544DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570FAA000759DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 2.5V | ±50ppm |
| 570BAB000118DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570BCC000112DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BBC000876DG | Skyworks Solutions Inc. | Si570 | 49.87013 MHz | LVDS | 3.3V | ±20ppm |
| 570ACA001527DGR | Skyworks Solutions Inc. | Si570 | 875 MHz | LVPECL | 3.3V | ±7ppm |
| 570BBC000121DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 570BAB000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001614DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001614DG | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB000299DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±50ppm |
| 570AAA000111DG | Skyworks Solutions Inc. | Si570 | 25 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC000118DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC000129DG | Skyworks Solutions Inc. | Si570 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 570BAC000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 570BBC000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 570FBC000121DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±20ppm |
| 570BCC000107DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570MAC000118DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 570FAB000433DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570FAB000544DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±50ppm |
| 570ABB000419DG | Skyworks Solutions Inc. | Si570 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 570BBB000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 570BCB000177DG | Skyworks Solutions Inc. | Si570 | 297 MHz | LVDS | 3.3V | ±7ppm |
| 570BBC000159DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 570BAB001641DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570ABA001058DGR | Skyworks Solutions Inc. | Si570 | 644.53 MHz | LVPECL | 3.3V | ±20ppm |
| 570ABA001328DGR | Skyworks Solutions Inc. | Si570 | 1.066 GHz | LVPECL | 3.3V | ±20ppm |
| 570BBA000504DGR | Skyworks Solutions Inc. | Si570 | 48 MHz | LVDS | 3.3V | ±20ppm |
| 570BBC000131DG | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 3.3V | ±20ppm |
| 570BBC000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 3.3V | ±20ppm |
| 570BCB001530DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570BCB001530DGR | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570FAB000125DG | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FAB000125DGR | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000125DG | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000125DGR | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FCB001691DG | Skyworks Solutions Inc. | Si570 | 698.8123 MHz | LVDS | 2.5V | ±7ppm |
| 570FCB001691DGR | Skyworks Solutions Inc. | Si570 | 698.8123 MHz | LVDS | 2.5V | ±7ppm |
| 570ABB000133DG | Skyworks Solutions Inc. | Si570 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 570ABB000133DGR | Skyworks Solutions Inc. | Si570 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 570ACA000462DG | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000462DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 3.3V | ±7ppm |
| 570BAB000125DG | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB000125DGR | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001595DG | Skyworks Solutions Inc. | Si570 | 333 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001595DGR | Skyworks Solutions Inc. | Si570 | 333 MHz | LVDS | 3.3V | ±50ppm |
| 570BBA000504DG | Skyworks Solutions Inc. | Si570 | 48 MHz | LVDS | 3.3V | ±20ppm |
| 570AAC000270DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001528DGR | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001762DGR | Skyworks Solutions Inc. | Si570 | 136.39008 MHz | LVPECL | 3.3V | ±50ppm |
| 570EAC000741DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
| 570FAC000465DGR | Skyworks Solutions Inc. | Si570 | 60 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000833DGR | Skyworks Solutions Inc. | Si570 | 153.6 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001059DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001531DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570BCA000136DG | Skyworks Solutions Inc. | Si570 | 160 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000301DG | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA002166DG | Skyworks Solutions Inc. | Si570 | 33.333333 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000313DG | Skyworks Solutions Inc. | Si570 | 300 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA001830DG | Skyworks Solutions Inc. | Si570 | 1.215 GHz | LVDS | 3.3V | ±7ppm |
| 570ACA002326DG | Skyworks Solutions Inc. | Si570 | 33.3333333 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002276DG | Skyworks Solutions Inc. | Si570 | 156.2 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000780DG | Skyworks Solutions Inc. | Si570 | 30 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000298DG | Skyworks Solutions Inc. | Si570 | 866 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000544DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000163DG | Skyworks Solutions Inc. | Si570 | 20 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA001040DG | Skyworks Solutions Inc. | Si570 | 188 MHz | LVDS | 2.5V | ±7ppm |
| 570BCA002400DG | Skyworks Solutions Inc. | Si570 | 49.87013 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA001123DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA002390DG | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA001476DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000520DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000915DG | Skyworks Solutions Inc. | Si570 | 375 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002414DG | Skyworks Solutions Inc. | Si570 | 174.703 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000157DG | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002412DG | Skyworks Solutions Inc. | Si570 | 1.05 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000420DG | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002188DG | Skyworks Solutions Inc. | Si570 | 20 MHz | LVPECL | 3.3V | ±7ppm |
| 570AAC000270DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001528DG | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001762DG | Skyworks Solutions Inc. | Si570 | 136.39008 MHz | LVPECL | 3.3V | ±50ppm |
| 570EAC000741DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
| 570FAC000465DG | Skyworks Solutions Inc. | Si570 | 60 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000833DG | Skyworks Solutions Inc. | Si570 | 153.6 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001059DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001531DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570NBA000163DG | Skyworks Solutions Inc. | Si570 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000223DG | Skyworks Solutions Inc. | Si570 | 28.192 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000233DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000352DG | Skyworks Solutions Inc. | Si570 | 288.399994 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000724DG | Skyworks Solutions Inc. | Si570 | 26 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000725DG | Skyworks Solutions Inc. | Si570 | 56 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000726DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000727DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000728DG | Skyworks Solutions Inc. | Si570 | 900 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001482DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001484DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001485DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001486DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570RBA000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 2.5V | ±20ppm |
| 570SBA000121DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±20ppm |
| 570BBA000290DG | Skyworks Solutions Inc. | Si570 | 250 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA001058DG | Skyworks Solutions Inc. | Si570 | 644.53 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA002068DG | Skyworks Solutions Inc. | Si570 | 54 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA002069DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 570FBA000157DG | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 2.5V | ±20ppm |
| 570NBA000280DG | Skyworks Solutions Inc. | Si570 | 108 MHz | LVDS | 3.3V | ±20ppm |
| 570EBA000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 2.5V | ±20ppm |
| 570BBA000111DG | Skyworks Solutions Inc. | Si570 | 25 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000372DG | Skyworks Solutions Inc. | Si570 | 800 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA001553DG | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 3.3V | ±20ppm |
| 570BBA002195DG | Skyworks Solutions Inc. | Si570 | 500 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000653DG | Skyworks Solutions Inc. | Si570 | 161.132812 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA002365DG | Skyworks Solutions Inc. | Si570 | 106.25 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000313DG | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±20ppm |
| 570FBA000122DG | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 2.5V | ±20ppm |
| 570FBA000668DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±20ppm |
| 570BBA002392DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000353DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA001873DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 570ACA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000111DGR | Skyworks Solutions Inc. | Si570 | 25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000115DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000141DGR | Skyworks Solutions Inc. | Si570 | 56.32 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000153DGR | Skyworks Solutions Inc. | Si570 | 12 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000163DGR | Skyworks Solutions Inc. | Si570 | 20 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000178DGR | Skyworks Solutions Inc. | Si570 | 16 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000233DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000368DGR | Skyworks Solutions Inc. | Si570 | 122.88 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000383DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000430DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000476DGR | Skyworks Solutions Inc. | Si570 | 322.265625 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000496DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000514DGR | Skyworks Solutions Inc. | Si570 | 19.982 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000650DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000732DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000770DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000810DGR | Skyworks Solutions Inc. | Si570 | 135.3 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000918DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000919DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000957DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000958DGR | Skyworks Solutions Inc. | Si570 | 74.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000973DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001026DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001055DGR | Skyworks Solutions Inc. | Si570 | 103.125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001122DGR | Skyworks Solutions Inc. | Si570 | 1.4 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001154DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001210DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001273DGR | Skyworks Solutions Inc. | Si570 | 1.03125 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001432DGR | Skyworks Solutions Inc. | Si570 | 72 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001479DGR | Skyworks Solutions Inc. | Si570 | 431.92 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001528DGR | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001557DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001617DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001644DGR | Skyworks Solutions Inc. | Si570 | 805.664063 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001732DGR | Skyworks Solutions Inc. | Si570 | 28 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001785DGR | Skyworks Solutions Inc. | Si570 | 19.982 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001786DGR | Skyworks Solutions Inc. | Si570 | 28 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001798DGR | Skyworks Solutions Inc. | Si570 | 307.2 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001864DGR | Skyworks Solutions Inc. | Si570 | 945 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001867DGR | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001874DGR | Skyworks Solutions Inc. | Si570 | 56.3202 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001880DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001922DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000111DGR | Skyworks Solutions Inc. | Si570 | 25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000115DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA000126DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000141DGR | Skyworks Solutions Inc. | Si570 | 56.32 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000159DGR | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000215DGR | Skyworks Solutions Inc. | Si570 | 27 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000233DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000274DGR | Skyworks Solutions Inc. | Si570 | 148 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000290DGR | Skyworks Solutions Inc. | Si570 | 250 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000305DGR | Skyworks Solutions Inc. | Si570 | 64 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000383DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000420DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000476DGR | Skyworks Solutions Inc. | Si570 | 322.265625 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000496DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000642DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000653DGR | Skyworks Solutions Inc. | Si570 | 161.132812 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000763DGR | Skyworks Solutions Inc. | Si570 | 1.09 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA000918DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001026DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001031DGR | Skyworks Solutions Inc. | Si570 | 437.5 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001226DGR | Skyworks Solutions Inc. | Si570 | 1.02 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA001336DGR | Skyworks Solutions Inc. | Si570 | 288.3 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001407DGR | Skyworks Solutions Inc. | Si570 | 932 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001454DGR | Skyworks Solutions Inc. | Si570 | 691.2 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001467DGR | Skyworks Solutions Inc. | Si570 | 266.666667 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001754DGR | Skyworks Solutions Inc. | Si570 | 39.0625 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001850DGR | Skyworks Solutions Inc. | Si570 | 625 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001915DGR | Skyworks Solutions Inc. | Si570 | 175 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001964DGR | Skyworks Solutions Inc. | Si570 | 14.875 MHz | LVDS | 3.3V | ±7ppm |
| 570ECA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 2.5V | ±7ppm |
| 570ECA000941DGR | Skyworks Solutions Inc. | Si570 | 56 MHz | LVPECL | 2.5V | ±7ppm |
| 570ECA001798DGR | Skyworks Solutions Inc. | Si570 | 307.2 MHz | LVPECL | 2.5V | ±7ppm |
| 570FCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000115DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000133DGR | Skyworks Solutions Inc. | Si570 | 500 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000169DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000179DGR | Skyworks Solutions Inc. | Si570 | 312.5 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000372DGR | Skyworks Solutions Inc. | Si570 | 800 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000420DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000476DGR | Skyworks Solutions Inc. | Si570 | 322.265625 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000643DGR | Skyworks Solutions Inc. | Si570 | 212.5 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001031DGR | Skyworks Solutions Inc. | Si570 | 437.5 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001228DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001702DGR | Skyworks Solutions Inc. | Si570 | 99.75 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001742DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001842DGR | Skyworks Solutions Inc. | Si570 | 200.08 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001879DGR | Skyworks Solutions Inc. | Si570 | 122.88 MHz | LVDS | 2.5V | ±7ppm |
| 570MCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000346DGR | Skyworks Solutions Inc. | Si570 | 81.36 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000763DGR | Skyworks Solutions Inc. | Si570 | 1.09 GHz | LVPECL | 3.3V | ±7ppm |
| 570MCA001230DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA001303DGR | Skyworks Solutions Inc. | Si570 | 212 MHz | LVPECL | 3.3V | ±7ppm |
| 570NCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000159DGR | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000759DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000803DGR | Skyworks Solutions Inc. | Si570 | 148.351648 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000830DGR | Skyworks Solutions Inc. | Si570 | 74.9633969 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000933DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA001047DGR | Skyworks Solutions Inc. | Si570 | 148.351 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA001780DGR | Skyworks Solutions Inc. | Si570 | 106.92 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA001881DGR | Skyworks Solutions Inc. | Si570 | 166 MHz | LVDS | 3.3V | ±7ppm |
| 570RCA000383DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVPECL | 2.5V | ±7ppm |
| 570RCA000825DGR | Skyworks Solutions Inc. | Si570 | 750 MHz | LVPECL | 2.5V | ±7ppm |
| 570RCA001068DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 2.5V | ±7ppm |
| 570SCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000212DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000273DGR | Skyworks Solutions Inc. | Si570 | 19.44 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000282DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000290DGR | Skyworks Solutions Inc. | Si570 | 250 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001930DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001977DGR | Skyworks Solutions Inc. | Si570 | 24 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002083DGR | Skyworks Solutions Inc. | Si570 | 161.4 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002096DGR | Skyworks Solutions Inc. | Si570 | 477.225 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000144DGR | Skyworks Solutions Inc. | Si570 | 80 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000161DGR | Skyworks Solutions Inc. | Si570 | 491.52 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000202DGR | Skyworks Solutions Inc. | Si570 | 14.4 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000273DGR | Skyworks Solutions Inc. | Si570 | 19.44 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000313DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000597DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000627DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001344DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001432DGR | Skyworks Solutions Inc. | Si570 | 72 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001978DGR | Skyworks Solutions Inc. | Si570 | 204.8 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002013DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002054DGR | Skyworks Solutions Inc. | Si570 | 174.703 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002055DGR | Skyworks Solutions Inc. | Si570 | 174.7031 MHz | LVDS | 3.3V | ±7ppm |
| 570ECA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 2.5V | ±7ppm |
| 570FCA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 2.5V | ±7ppm |
| 570FCA000136DGR | Skyworks Solutions Inc. | Si570 | 160 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000400DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001346DGR | Skyworks Solutions Inc. | Si570 | 200.08 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001624DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 570MCA001978DGR | Skyworks Solutions Inc. | Si570 | 204.8 MHz | LVPECL | 3.3V | ±7ppm |
| 570NCA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA002126DGR | Skyworks Solutions Inc. | Si570 | 152.987639 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA002145DGR | Skyworks Solutions Inc. | Si570 | 122.88 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000298DGR | Skyworks Solutions Inc. | Si570 | 866 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002325DGR | Skyworks Solutions Inc. | Si570 | 10.1313 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000133DGR | Skyworks Solutions Inc. | Si570 | 500 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000372DGR | Skyworks Solutions Inc. | Si570 | 800 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002281DGR | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA002265DGR | Skyworks Solutions Inc. | Si570 | 133.333 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002235DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000896DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000907DGR | Skyworks Solutions Inc. | Si570 | 106.25 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000282DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002229DGR | Skyworks Solutions Inc. | Si570 | 143.75 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000163DGR | Skyworks Solutions Inc. | Si570 | 20 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA002351DGR | Skyworks Solutions Inc. | Si570 | 99.75 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA000780DGR | Skyworks Solutions Inc. | Si570 | 30 MHz | LVPECL | 3.3V | ±7ppm |
| 570FCA002334DGR | Skyworks Solutions Inc. | Si570 | 99.75 MHz | LVDS | 2.5V | ±7ppm |
| 570BCA000299DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000157DGR | Skyworks Solutions Inc. | Si570 | 50 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000804DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000458DGR | Skyworks Solutions Inc. | Si570 | 26 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000668DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ECA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 2.5V | ±7ppm |
| 570BCA000991DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000685DGR | Skyworks Solutions Inc. | Si570 | 640 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002276DGR | Skyworks Solutions Inc. | Si570 | 156.2 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002287DGR | Skyworks Solutions Inc. | Si570 | 195.3125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002280DGR | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002326DGR | Skyworks Solutions Inc. | Si570 | 33.3333333 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000586DGR | Skyworks Solutions Inc. | Si570 | 155.52 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000676DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA001844DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVPECL | 3.3V | ±7ppm |
| 570FCA002199DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 2.5V | ±7ppm |
| 570NCA000157DGR | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000301DGR | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVDS | 3.3V | ±7ppm |
| 570ACA000400DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570FCA002265DGR | Skyworks Solutions Inc. | Si570 | 133.333 MHz | LVDS | 2.5V | ±7ppm |
| 570BCA002166DGR | Skyworks Solutions Inc. | Si570 | 33.333333 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002322DGR | Skyworks Solutions Inc. | Si570 | 13.1313 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA001830DGR | Skyworks Solutions Inc. | Si570 | 1.215 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA000136DGR | Skyworks Solutions Inc. | Si570 | 160 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA002183DGR | Skyworks Solutions Inc. | Si570 | 187.3125 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA002327DGR | Skyworks Solutions Inc. | Si570 | 13.040521 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA001617DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000313DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVPECL | 3.3V | ±7ppm |
1.技术支持 2.客服咨询
全方位技术指导,专业的技术支持让您感受 专业的销售团队,耐心为您解答任
到前所未有的后顾无忧. 何疑问.让您的消费得到保障。
3.质量保证，诚信为上 4.提升业绩,降低成本
我司以"科技为动力,以质量求生存."为理念. 为您的产品量身订制,免费取样,
为您做到低成本,高效率.
工作时间
1，我公司早上上班时间为8：30——12：00。下午上班时间为1：30——5：30?；队媸弊裳颐?，业务员手机都是24小时开机的哦！
2，珠三角地区的客户统一发信丰快递。如您有指定的快递公司，请提前和业务员沟通。广东省外的客户统一发安全便捷快速的顺丰快递.
深 圳 市 泰 河 电 子 有 限 公 司
代理:EPSON,KDS,CITIZEN,SEIKO
电话:0755-27872782
手机:13824306246
邮箱:taiheth@163.com
Q Q:794113422
地址:深圳市宝安区40区33号工业城6楼
网址：http://www.yddxqf.cn
温馨提示:泰河电子已正式开通微信公众号,大家可以关注订阅我司的微信公众号,每天都会更新新的资料,及进口晶振原包装图.与官网同步,将可以第一时间与大家沟通!欢迎扫码关注!
微信:taihekj QQ:794113422
